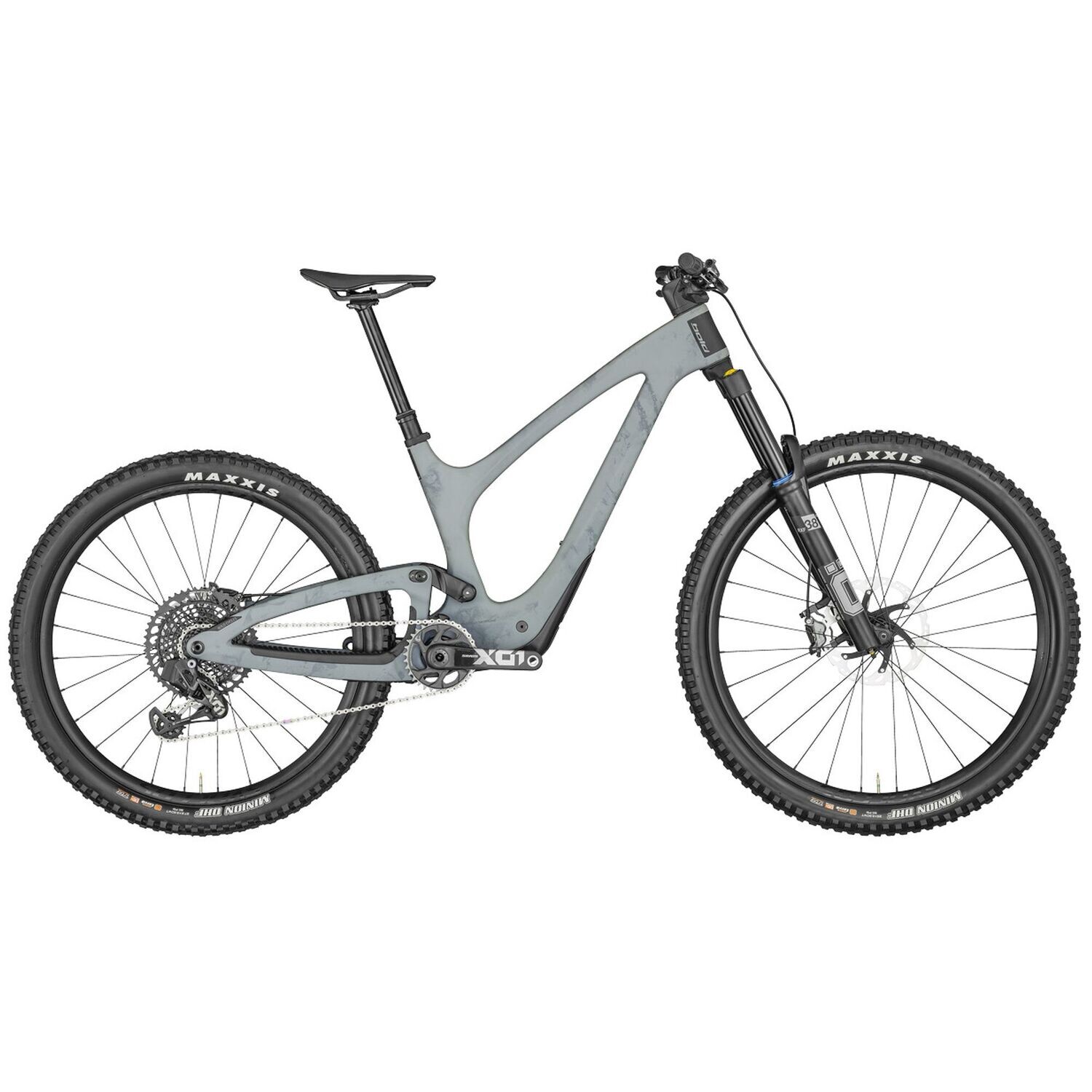

BOLD BIKE UNPLUGGED ULTIMATE

Renowned as the Berm Slayer, Traction Machine, and Race Rocket, the Bold Unplugged is the epitome of Enduro biking.

Engineered to endure the harshest impacts and navigate the roughest terrains, the IST-VP suspension design elevates the Unplugged to a level of suspension feel from another realm. With a stiffer frame layout ensuring precise gravity-oriented ride characteristics, this bike is tailored for raw speed and uncompromised performance. A low center of gravity keeps it firmly planted, offering a stable and controlled ride. Whether you're a racer or a park enthusiast, the Unplugged means serious business.

FRAME: Bold Unplugged 160 / Carbon HMX

• Integrated Suspension Technology / IST VP
• Vario Tech / Mullet Ready / Wireless Shifting ONLY
• Head angle adjustable / Syncros Cable Integration System
• BB92 / UDH Interface / 12x148mm with 55mm Chainline

FORK: Öhlins RXF38 m.2 Air

• TTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle
• 44mm offset / tapered steerer
• 170mm travel

REAR SHOCK: FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion

• SCOTT custom w. travel / geo adj.
• 3 modes: Climb-Traction Control-Descend
• Custom large Air volume / Comp & Reb. Adj.
• T185X55mm / Travel 160-100-Climb

REMOTE SYSTEM: TracLoc Technology

• Rear Suspension & Dropper Remote
• 3 Rear Suspension modes

DRIVETRAIN: SRAM X01 Eagle AXS / 12 Speed

• Wireless Electronic Shift System

BRAKES: Shimano XTR M9120 4 Piston Disc

• Rotor Shimano RT-86 / 6 Bolt / 203/F and 180/R

HANDLEBAR: Syncros Hixon iC Carbon

• Size S & M 15mm rise / Size L & XL 25mm rise
• Back sweep 8° / 780mm
• Syncros Endurance lock-on grips

SEATPOST: Syncros Duncan Dropper Post 1.5 34.9mm

• Size S 170mm / Size M, L & XL 200mm

SADDLE: Syncros Tofino Regular 1.0

• Carbon rails

HEADSET: Syncros - Acros Angle adjust & Cable Routing HS System

• Stainless / +-0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

WHEELSET: Syncros Revelstoke 1.5 6 Bolt

• F: 15x110mm / R: 12x148mm
• 30mm Tubeless ready rim 28H / XD Driver
• Syncros Axle w/Removable Lever with Tool
• Size S & M F29 - R27.5 Mullet / Size L & XL F&R 29

TIRES: Maxxis Minion DHF

• Front: 29x2.5" / Rear: 2.5" / 60TPI Foldable
• Tubeless Ready / EXO+
• Size S & M 27.5 / Size L & XL 29

EXTRAS:

• Save the Day Kit
• SRAM AXS Powerpack
• Syncros Fork Fender

ACCESSORIES:

• Syncros Eco Sealant

INTERNAL SUSPENSION TECHNOLOGY (IST): Frame stiffness, a low center of gravity, and optimum shock performance are achieved through Internal Suspension Technology. The rear shock is shielded from dirt, water, and crashes, ensuring optimal function, better handling, longer service intervals, and a stable, confidence-inspiring ride.

IST VP: With the shock placed internally, the IST VP design features an ultra-compact linkage system for low weight and high stiffness. The Virtual Pivot linkage design enhances suspension feel, pedaling efficiency, and braking response, delivering exceptional traction characteristics across various terrains.

REAR SHOCK: Access the FOX FLOAT X NUDE shock via a cover in the downtube area, allowing easy adjustment of rebound, compression, shock pressure, and TracLoc Suspension System cable.

TRAVEL INDICATOR: Set the right sag with the magnet-equipped travel indicator, ensuring perfect bottom-out control by checking the end-stroke travel on the smartly designed indicator.

TRACLOC: TracLoc manages sag by dynamically altering the bike's geometry. Traction mode offers firmer suspension and less travel for climbing, while a full lockout mode optimizes efficiency on steep trails.

INTEGRATED TOOLS: A clever storage solution inside the frame provides easy access to tools. The kit includes a spare tube, mini pump, and tire levers, while the Syncros Multi-Tool and rear axle tool are hidden inside the frame for emergencies.
