GT GRADE CARBON ELITE 700 2024

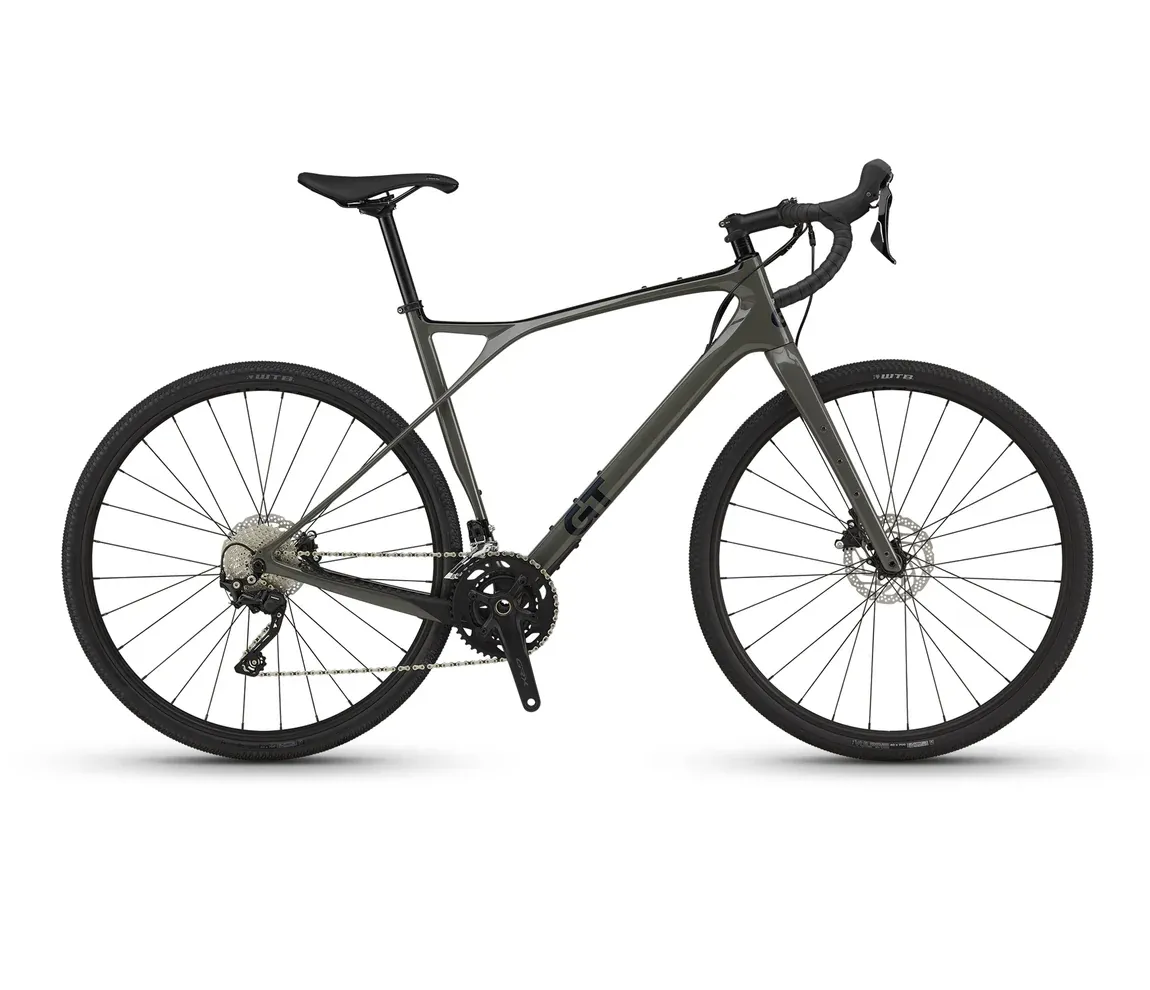

Grade Carbon Elite

Innovative trails call for an innovative ride. The Grade Carbon Elite is your gateway to off-road adventure — our entry-level carbon gravel bike, built to explore new routes with confidence and control.

Outfitted with a reliable Shimano GRX 400 drivetrain and brakes, and rolling on grippy WTB Vulpine 700x40c tires, it’s a fast, capable and comfortable machine ready for the long haul.

Key Features:

• Shimano GRX 400 2x10-speed drivetrain
• Shimano GRX hydraulic disc brakes
• WTB Vulpine TCS Light 700x40c tires

Gravel Travel Built In

The Grade’s Triple Triangle frame with floating stays delivers up to 30mm of natural compliance, without the need for rubber bumpers, pivots, or complex mechanics. This clever engineering is made possible by our Dual Fiber Dynamics (DFD) — a unique blend of low-modulus, solid-core, long-strand glass fibers shaped for optimal flex, then wrapped in carbon for added strength and seamless performance.

Integrated Frame Protection

From rugged singletrack to smooth pavement, the Grade handles it all. To protect your frame from the inevitable hits and bumps, we’ve added durable downtube protection against rock strikes and chainstay guards to prevent chain slap.

Ready for Suspension

If you’re after even more confidence on the roughest terrain, the Grade is compatible with suspension forks, giving you the option to go full adventure mode when the gravel gets wild.

SPECS :

Frame

frame : Grade Carbon Frame, Triple Triangle Design feat. Floating Seatstays, 12x142mm Thru Axle, 45mm Max Tire Width

sizes : availableSM, MD, LG, XL

fork : Grade Carbon Fork, 1.5 Tapered Carbon Steerer, 12x100 Thru Axle

wheel size : 700c

Wheels

rims : WTB ST i23 TCS 2.0, 28h, Tubeless Ready

front hub : Formula CL-712, 12x100mm Centerlock

rear hub : Formula, 12x142mm Centerlock

front tire : WTB Vulpine TCS Light, 700x40c, Dual DNA Compound, TCS Aramid Bead

rear tire : WTB Vulpine TCS Light, 700x40c, Dual DNA Compound, TCS Aramid Bead

Drivetrain

rear derailleur : Shimano GRX RX400, Shadow Plus

front derailleur : Shimano GRX RX-400

shifters : Shimano GRX 400 2x10

rear cogs : Shimano HG5001, 11-34T

chain : KMC X10, 10-speed

crank : Shimano GRX RX6001, 46/30T

bottom bracket : Shimano RS500 BSA

Cockpit

handlebar : GT DropTune RS, Alloy, 16° Flare (Width: S & M - 42cm, L -44cm, XL - 46cm)

stem : GT 3D Forged SL Alloy, 31.8

grips : GT Gravel Grip Premium Tape

headset : FSA No.42 ACB

seatpost : GT Alloy, 27.2mm 350mm (S/M/L-350mm), (XL-400mm)

saddle : WTB Silverado
