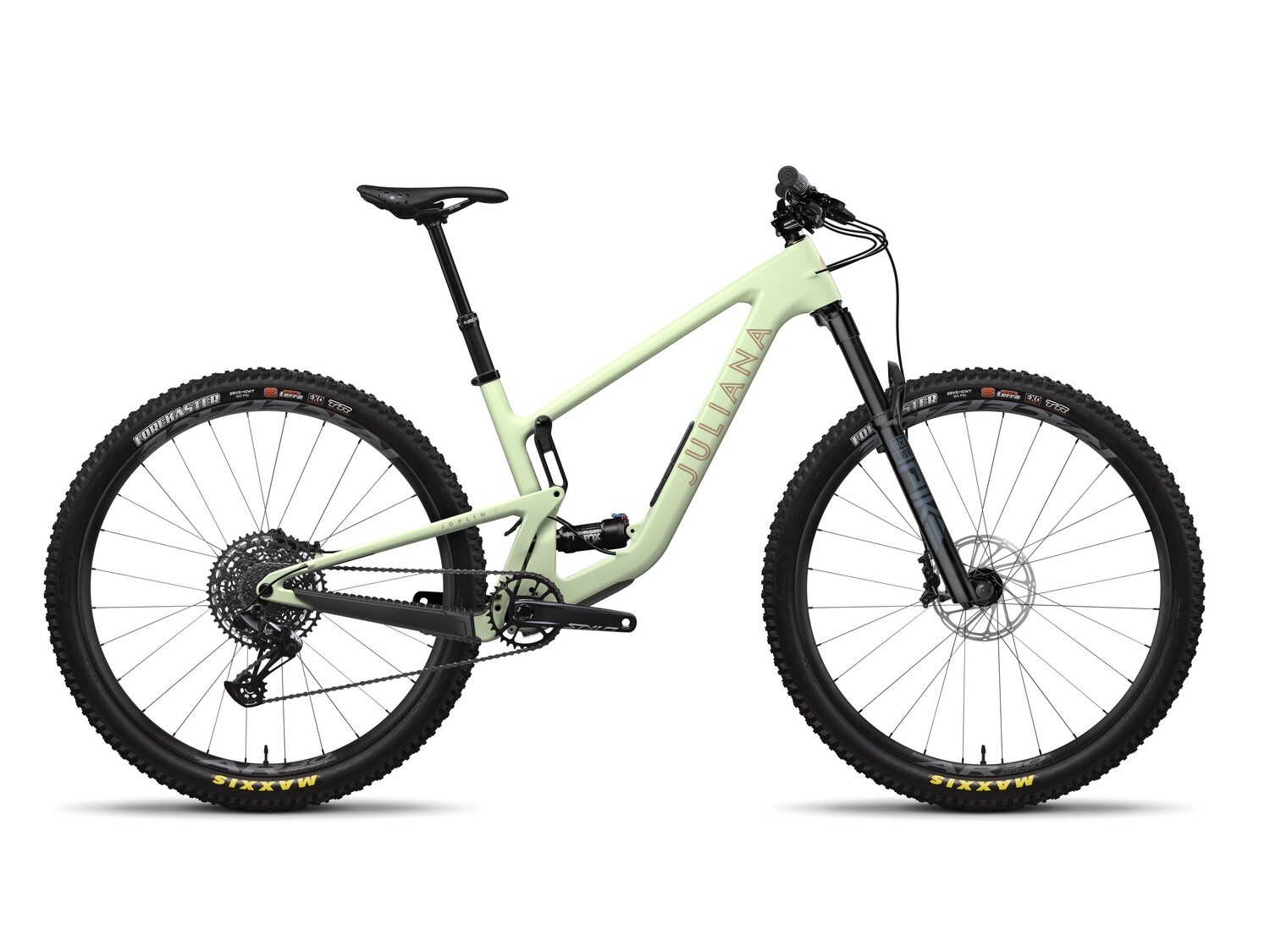

JULIANA JOPLIN 4 C 29 R 2024

Soar to New Heights with the Juliana Joplin

Embark on a trail-blazing journey above the tree line and into uncharted terrain with the Juliana Joplin. Boasting 120mm of VPP™ travel and 29-inch wheels, this trail companion is the ultimate climbing partner, propelling riders to conquer every summit. As you descend, the Joplin's head tube angle and slack geo effortlessly navigate rocky landscapes, providing a thrilling downhill experience. Whether on a solo adventure or sharing the trail with friends, the Joplin invites riders to elevate their experience and reach new heights.

Key Features:

• Available In: Carbon C and Carbon CC
• Wheel Size: 29-inch
• Front Travel: 130mm
• Rear Travel: 120mm

29-inch Wheels:

Experience reduced rolling resistance and a larger footprint for enhanced climbing confidence and efficient ground coverage over obstacles.

120mm VPP™ Travel:

Optimized VPP™ suspension strikes the perfect balance between pedaling efficiency and bump absorption, ensuring peak performance tailored to its design purpose.

Glovebox:

Securely store ride essentials beneath a high-quality latch and panel in the downtube. The Glovebox includes a fitted Tool Wallet and Tube Purse, designed for the frame to keep your tools easily accessible.

Full Carbon C and CC Frame:

Choose between Carbon C and Carbon CC frames, with the latter utilizing the finest materials and production processes available. Both versions, crafted in our own factory, are equally strong and stiff, providing a lifetime warranty.

Made to Last Many Lifetimes:

The Joplin's legendary fit, finish, and quality construction place it in a league of its own. The frame, bearings, and optional Reserve wheels are backed by a lifetime warranty, and any service is made easy with our Rider Support pledge.

Components:

• Material: Carbon C
• Travel: 120mm
• Wheel Size: 29
• Rear Shock: FOX Float Performance, 190x45
• Fork: RockShox Pike Base, 130mm
• Rear Derailleur: SRAM NX Eagle, 12spd
• Right Shifter: SRAM NX Eagle, 12spd
• Cassette: SRAM PG1230, 12spd, 11-50t
• Chain: SRAM NX Eagle, 12spd
• Bottom Bracket: SRAM DUB 68/73mm Threaded BB
• Headset: FSA IS-2/47/42 ACB
• Rear Tire: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
• Front Tire: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
• Front Hub: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt, 32h
• Front Rim: RaceFace AR Offset 30 29"
• Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
• Rear Rim: RaceFace AR Offset 30 29"
• Front Rotor: Avid Centerline, 180mm
• Rear Rotor: Avid Centerline, 180mm
• Brakes: SRAM G2 R
• Crankset: SRAM Stylo 148 DUB 32t
• Handlebars: RaceFace Ride
• Stem: Burgtec Enduro MK3, 42mm
• Saddle: Juliana Primiero Saddle
• Seatpost: SDG Tellis Dropper, 31.6
• Grips: Juliana House Grips

Joplin Frame Specifications:

• Suspension System: VPP
• Headset/Headtube: Integrated (IS41/52)
• Seat Post: 31.6mm
• Seat Clamp: 36.4mm
• Eye to Eye Length: 190mm
• Stroke: 45mm
• Fork Compatibility: 130mm
• Fork Offset: 44mm
• Brake Mount: PM 180mm
• BB Shell: 73mm Threaded
• Max Tire Size: 2.5"
• Max Chainring Size: 36t
• Water Bottle Mounts: 1
• Shock Mounting Bushing Front: 30x8
• Shock Mounting Bushing Rear: 30x8
