LAHYLA BIG DREW 26X24

Description:

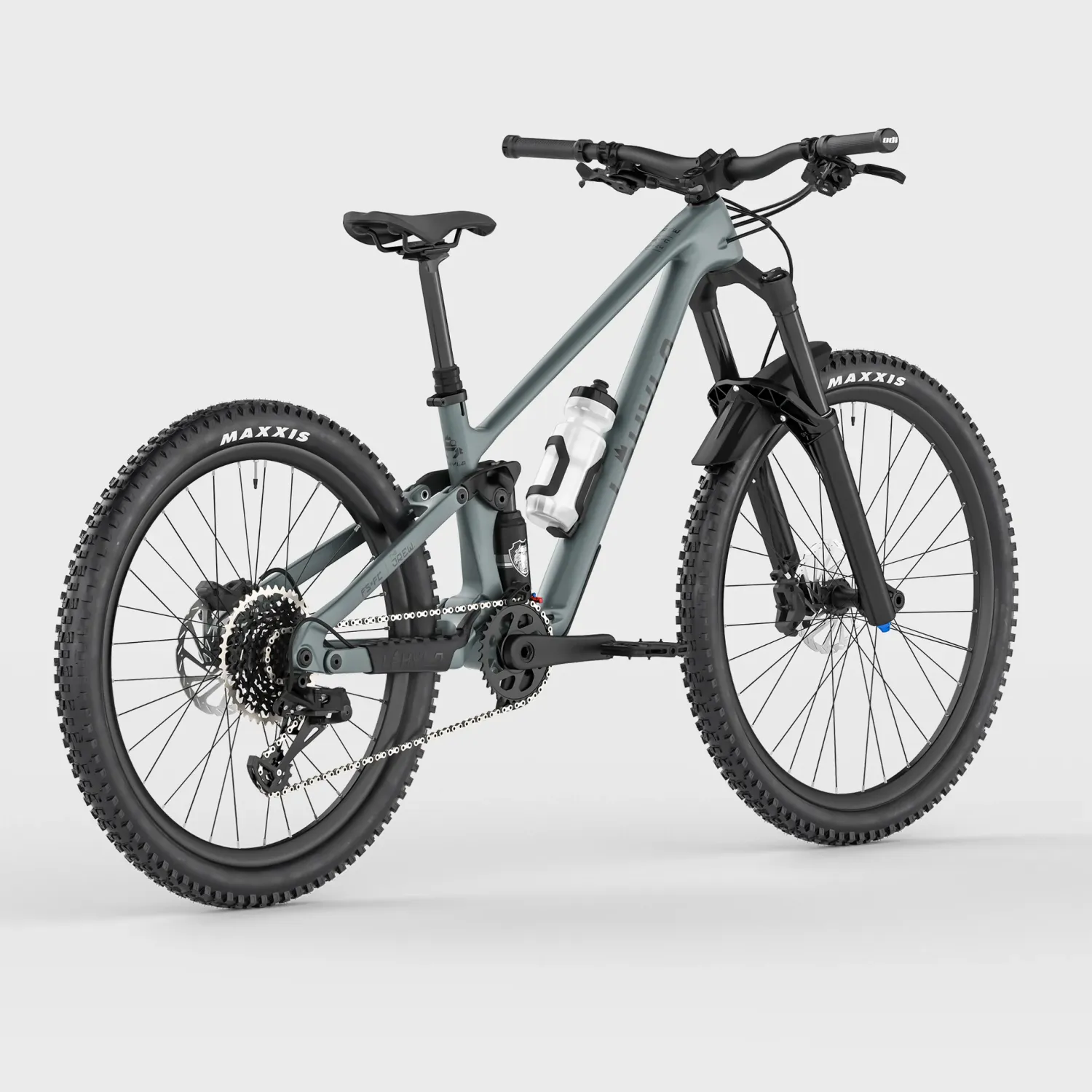

The LaHyla Drew Mullet 26×24 is a high-performance full‑suspension carbon MTB for 9–12 year-olds (135–156 cm). Its lightweight carbon frame and four‑bar suspension deliver trail-ready agility and balance 

With a Manitou Junit 140 mm fork and Manitou Mara rear shock (135 mm), adjustable for lighter riders, this bike handles technical terrain with ease .

The SRAM NX 1×11 drivetrain and 11–42T cassette provide reliable gear range for climbs and descents , while junior‑specific Tektro hydraulic brakes with 180/160 mm rotors ensure strong stopping power 

A true mullet setup features 26″ front and 24″ rear wheels, Formula Boost hubs, and Maxxis Minion tires.

The bike includes a 120 mm dropper post, short cranks, low BB, narrow Q-Factor, ISCG05 mount, integrated protection, and weighs just 12.5 kg without pedals.

Technical Specs:

Frame & Suspension:

• Full carbon four‑bar frame
• Fork: Manitou Junit 34 Expert 26″ – 140 mm travel
• Shock: Manitou Mara 190×40 mm – 135 mm travel

Wheels & Tires:

• Front: Jalco JD200 PLUS 26″ – Rear: 24″ – 25 mm internal width – tubeless ready
• Front Hub: Formula DC‑711 Boost 15×110 mm
• Rear Hub: Formula DHT‑14211 Boost 12×142 mm
• Tires: Maxxis Minion DHF 26×2.5 / DHR II 24×2.3 – Dual Compound, EXO TR

Brakes:

• Tektro junior hydraulic – lever for two fingers
• Rotors: Front 180 mm / Rear 160 mm – anti‑vibration

Drivetrain:

• SRAM NX 1×11 derailleur & shifter
• Crankset: Samox 140 mm + 30 T narrow‑wide chainring
• Cassette: SRAM PG 11‑42T
• Chain: KMC X11

Components:

• Handlebar: JD 6061‑T6 – 730 mm width – 9° backsweep, 5° upsweep, 22 mm rise
• Stem: JD CNC 39 mm clamp – 45 mm length
• Dropper Post: JD alu 30.9 mm – 120 mm travel
• BB: Samox BSA 73 mm
• ISCG05 mount + bashguard
• Saddle: Velo JR spec
• Grips: Velo 28 mm G2 lock‑on

General Info:

• Weight: 27.5 lb / 12.5 kg (no pedal)
• Wheel combo: 26″ front / 24″ rear for youth
• Features: low BB, short cranks, narrow Q‑Factor (155 mm), water bottle mount, integrated protection
