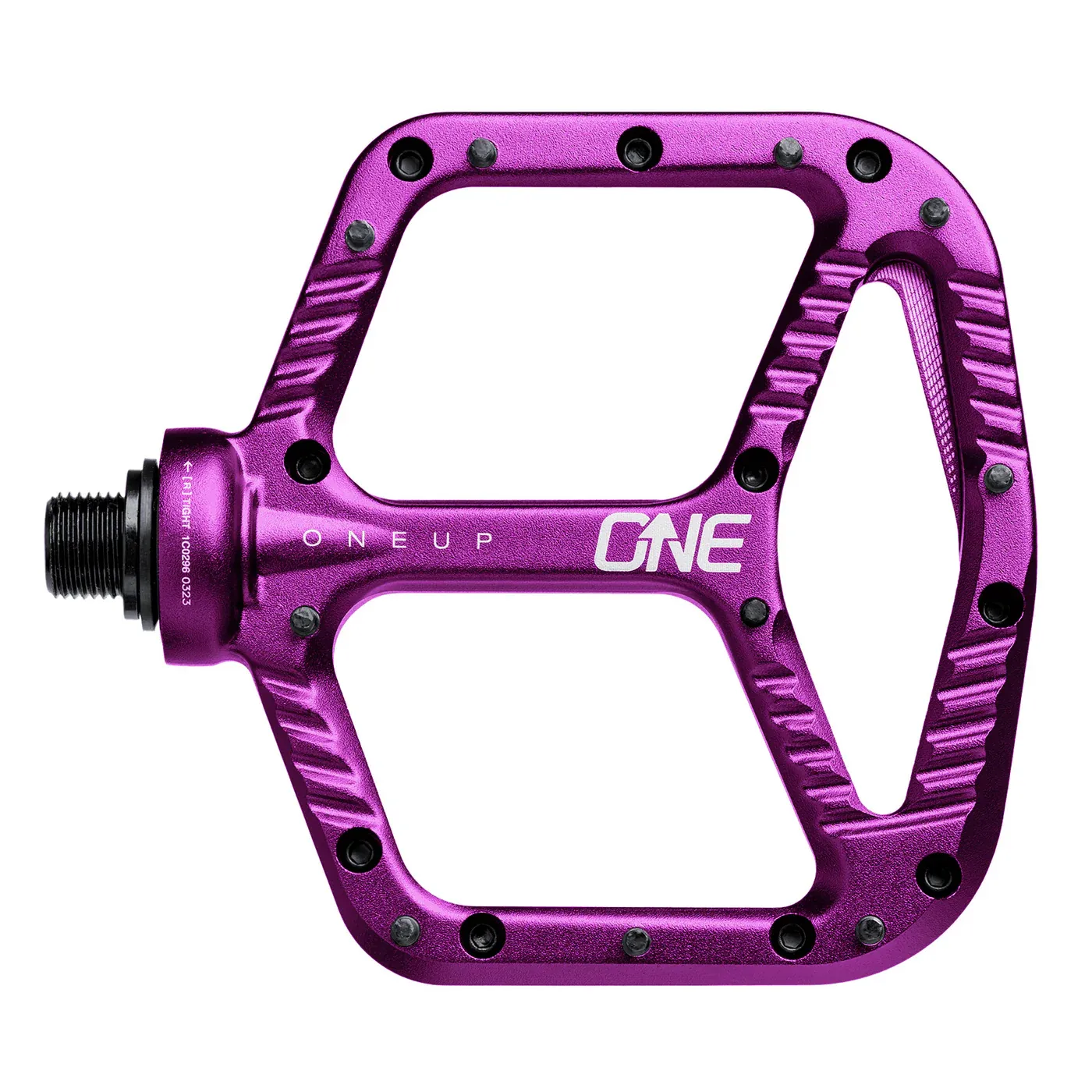

ONE UP FLAT PEDAL ALUMINUM

Clip less and ride with confidence. These ultra-thin aluminium flat pedals feature a large platform with a slightly convex shape that naturally cradles the arch of your foot. With 10 hexagonal pins per side and a grippy 6061-T6 aluminum body, they’re designed to offer a solid, connected ride feel across all trail conditions.

Specs:

• Weight: 386g / pair
• Platform size: 115 x 105mm
• Platform material: 6061-T6 aluminum
• Axle material: Chromoly steel
• Height: 8.3mm to 12mm (ultra-low profile)
• Pins: 10 hexagonal pins per side (replaceable)
• Colours: Black, Blue, Green, Grey, Red, Orange
• Compatibility: Works with SRAM carbon cranks (post-5221 date code); compatible with crank boots (minor modification may be needed)
• Free-spinning resistance and axle play are normal by design and are corrected upon proper installation (torque to 35Nm)

In the Box:

• 1 pair of pedals (left & right)
• 20 pre-installed pins
• 4 replacement pins

Installation Notes:

• Apply grease to the rubber seal before mounting
• Ensure free rotation and gap between pedal body and crank arm
• Torque pedals to 35Nm
• Axle play disappears once properly installed
