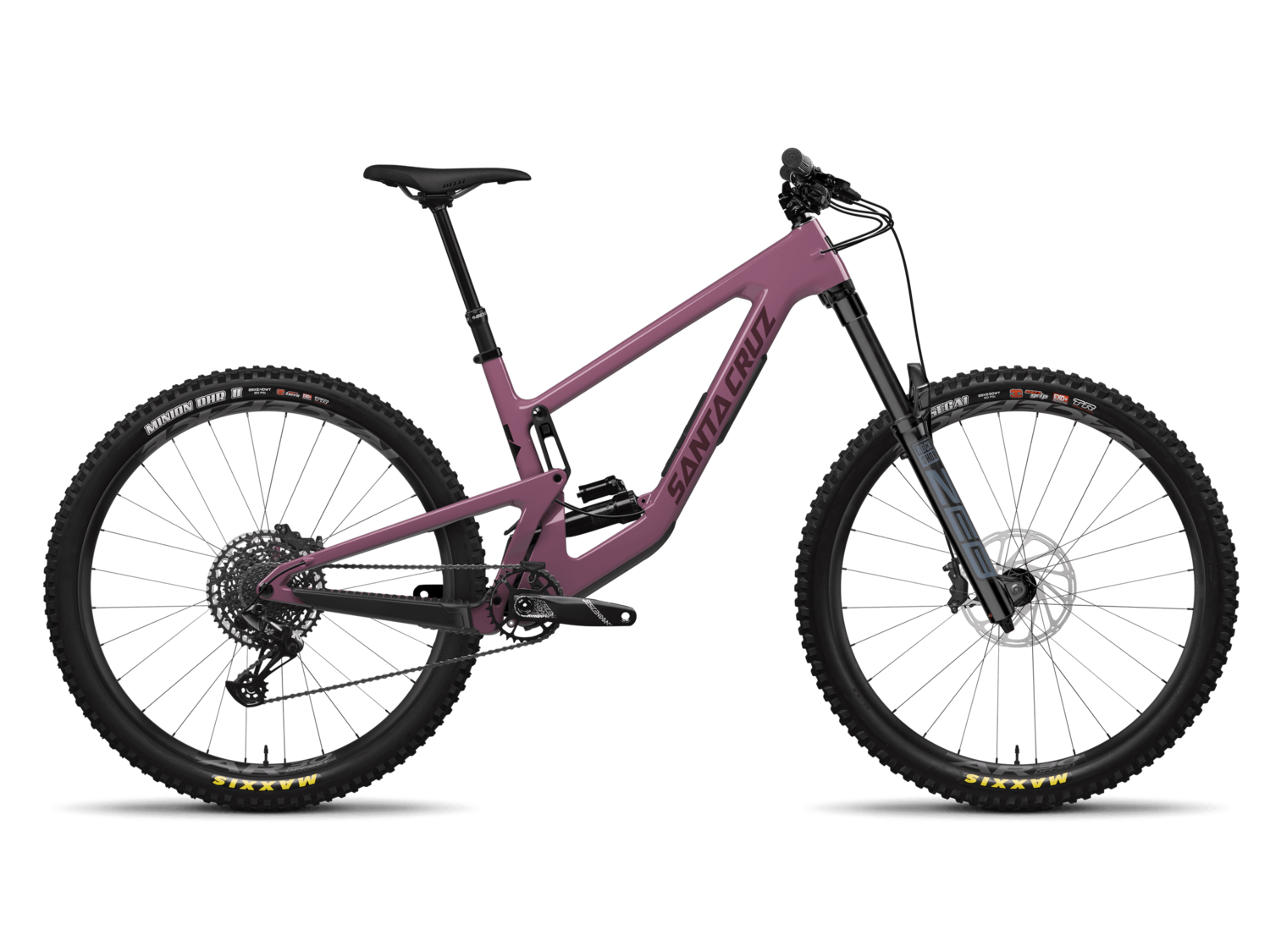

SANTA CRUZ MEGATOWER 2 C 29 S 2023
$5 799.99 CDN
Sold out
Color
Size
Sold out
Save this product for later
SANTA CRUZ MEGATOWER 2 C 29 S 2023
Product Details
Brand: SANTA CRUZ
A downhill bike that goes everywhere
Seriously. The Megatower’s big wheels, long travel, and tough carbon fiber chassis delivers the high-speed security traits of a downhill bike. Yet the relatively-steep seat tube angle and size-specific geo maintain the Mega’s mega pedaling ability—elevating its reputation as the perfect choice for big gravity rides and DH park laps.
Megatower Frame Specifications
| Suspension System | VPP |
| Front Derailleur | No compatibility |
| Headset/Headtube | Integrated (IS41/52) |
| Seat Post | 31.6mm |
| Seat Clamp | 36.4mm |
| Eye to Eye length | 230mm |
| Stroke | 62.5mm |
| BB Shell | 73mm Threaded |
| Max Tire Size | 2.5" |
| Max Chainring Size | 36t |
| Water Bottle Mounts | 1 |
| Shock Mounting Bushing Front | 30x8 |
| Shock Mounting Bushing Rear | 30x8 |
| Fork Offset | 44mm |
| Brake Mount | 200mm PM |
Geometry
All units are in millimeters or degrees.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
| Stack | 616/618 | 625/627 | 638/640 | 656/658 | 670/672 |
| Head Tube Angle | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° |
| Seat Tube Length | 380 | 405 | 430 | 460 | 500 |
| Front Center | 770 | 799 | 826 | 855 | 886 |
| BB Height | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 |
| BB Drop | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 |
| Wheelbase | 1206 | 1236/1237 | 1266 | 1298 | 1333/1334 |
| Rear Center | 436/437 | 437/438 | 440/441 | 443/444 | 447/448 |
| Head Tube Length | 90 | 100 | 115 | 135 | 150 |
| Top Tube Length | 570 | 594/595 | 613 | 637/638 | 666/667 |
| Seat Tube Angle | 77.24°/77.0° | 77.42°/77.2° | 77.8°/77.5° | 77.8°/77.5° | 77.8°/77.5° |
| Standover Height | 709/705 | 716/712 | 723/718 | 722/717 | 724/720 |
