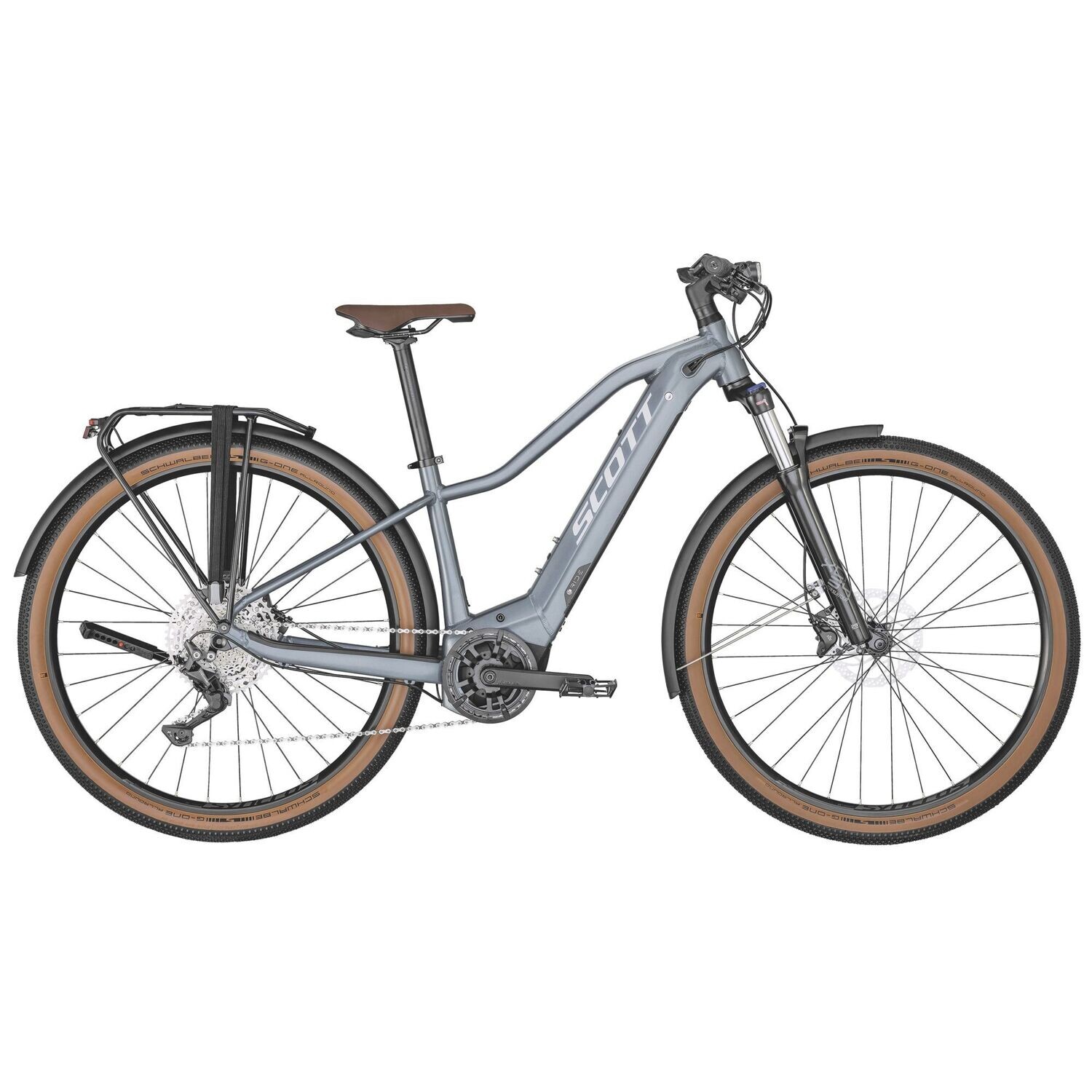

SCOTT AXIS E-RIDE 20

SPECIFICATIONS

The SCOTT Axis eRIDE 20 Lady is now offered with a women’s specific frame, providing an enhanced and tailored riding experience for female riders. Simply charge up the battery, set your course or activity, and venture out without a second thought. If you need to bring extra gear along, loading up the rack for the ride is a breeze, allowing you to embark on exploration with ease.

• Frame:
  • Alloy XS-L=29" / 6061 Alloy custom butted tubing
  • Bosch Integr. removable Battery
  • Range Booster Ready / internal cable routing / slanted Motor
• Fork:
  • SR Suntour XCR34 Air / Tapered / XS-L 29"/ 100mm Travel / 15x110 bolt Axle / Lock Out
• Drive Unit:
  • Bosch Performance
  • EU: 25kmh / US: 20mph
• Battery:
  • PowerTube 500Wh
• Display:
  • Purion Display
• Charger:
  • 2A Charger
• Rear Derailleur:
  • Shimano Deore / 11 Speed
• Shifters:
  • Shimano Deore Trigger SLM5100RA
• Crankset:
  • Miranda 172,5MM
• Chainring:
  • 38T Chainflow / Chainprotector
• Chain:
  • KMC E11S
• Cassette:
  • Shimano CS-M5100-11 11-51T 11S
• Brakes:
  • Shimano BR-MT400 Disc
  • 180/F SM-RT30 CL and 180/R RT-EM300M CL rotor
• Handlebar:
  • Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise
  • Syncros Lock On Grip
• Stem:
  • Syncros UC3.0 with integrated Light
• Seatpost:
  • Syncros M3.0 / 31.6
• Seat:
  • Selle Royale Essenza
• Headset:
  • Syncros FL2.0 Urban / Tapered 1.5"-1 1/8" semi integ. OD 50/61mm / ID 44/55mm
• Hub (Front):
  • Shimano HB-MT400 / 15x110mm
• Hub (Rear):
  • Shimano FH-MT400B / Boost 12x148mm
• Spokes:
  • Black Spokes
• Rims:
  • Syncros X18 Disc / 32H
  • Tubeless ready
• Front Tire:
  • Schwalbe G-One Allround Performance 29x2.25" Wired
• Rear Tire:
  • Schwalbe G-One Allround Performance 29x2.25" Wired
• Lights:
  • Spanninga XE / 40 Lux integrated front light
  • Rear Pimento
• Rack:
  • Axis by Racktime SnapIt 2.0 25KG
• Pedals:
  • VP VPE-506
• Extras:
  • Curana alloy profile Fender / Ursus Kickstand
• Approx Weights:
  • In KG: 26.40
  • In LBS: 58.20
• Max. System Weight:
  • 128 kg (Includes the bike, the rider, the equipment, and possible additional luggage.)
